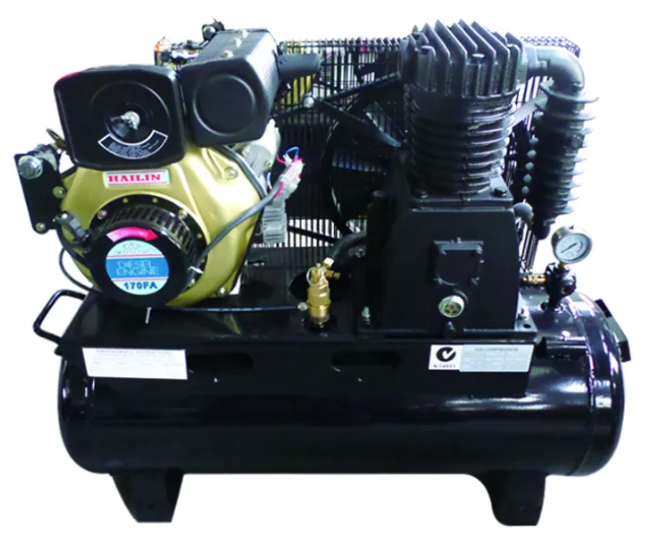

I. Working Principle of Diesel Engine Air Compressor

Diesel Engine Part:

  Intake Stroke: Air enters the cylinder through an air filter.
  Compression Stroke: The piston moves upward, compressing the air, increasing its temperature and pressure.
  Combustion Stroke: Fuel is injected into the high-pressure, high-temperature air, burning to generate expanding force, driving the piston downward, converting chemical energy into mechanical energy.
  Exhaust Stroke: Exhaust gases exit the cylinder through exhaust valves.

Driving the Compressor:

The diesel engine's crankshaft, via components like a flywheel and coupling, transmits rotary motion to the compressor's crankshaft, driving its operation.

Compressor Part:

  Intake Process:As the compressor piston moves downward, cylinder pressure decreases, opening the intake valve. External air enters the cylinder through an intake filter.
  Compression Process:
When the piston moves upward, the intake valve closes, compressing the air inside the cylinder, raising pressure and temperature.
  Exhaust Process:When the cylinder pressure reaches a set value, the exhaust valve opens, allowing compressed air to exit through the exhaust pipe into an air storage tank or directly to pneumatic equipment.

II. Components of Diesel Engine Air Compressor

Diesel Engine:Core component providing power, typically a durable and long-lasting diesel engine.
Compressor:Main component for air compression, commonly piston-type or screw-type compressors.
Intake System:Includes air filters, intake pipes, etc., ensuring clean air enters the compressor.
Exhaust System:Comprises exhaust pipes, silencers, etc., facilitating smooth discharge of compressed air and reducing noise.
Air Storage Tank:Used for storing compressed air, balancing air pressure fluctuations.
Cooling System:Water-cooled or air-cooled devices preventing overheating of the diesel engine and compressor.
Lubrication System:Provides lubricating oil to moving parts, reducing friction and wear.
Control System:Includes sensors, controllers, etc., enabling automatic control and protection functions for the diesel engine air compressor.

III. Applications of Diesel Engine Air Compressor

Due to its independence from the power grid and robust capabilities, the diesel engine air compressor finds application in:

Construction Projects: Providing compressed air for pneumatic tools and equipment at sites without reliable electricity.
Mining Operations: Supplying compressed air for underground operations like drilling and ventilation.
Road Transport: Powering pneumatic tools in highway maintenance and bridge construction.
Emergency Response: Supplying independent compressed air at disaster and accident sites.

The diesel engine air compressor is vital in modern industries and projects due to its powerful capabilities and versatile applications. Understanding its working principles and components not only enhances operational efficiency but also prolongs equipment lifespan through proper use and maintenance.
